| model | BCM957504-N1100G |
| Lifecycle | Active |
| Max Speed |
100GbE |
|
Connector Type
|
QSFP56 |
| Warranty | 3 Years |
모델 :
BCM957504-N1100G부품 번호 :
BCM957504-N1100G패키지 유형 :
Carton단일 패키지 크기 :
26*20*8 CM단일 총중량 :
0.54 KG최소 주문하다 :
1 Piece해운 :
Contact supplier to negotiate shipping details결제 :
Western Union、L/C、T/T、MoneyGram、D/A、D/P반품 및 환불 :
Returns & refunds accept보증 :

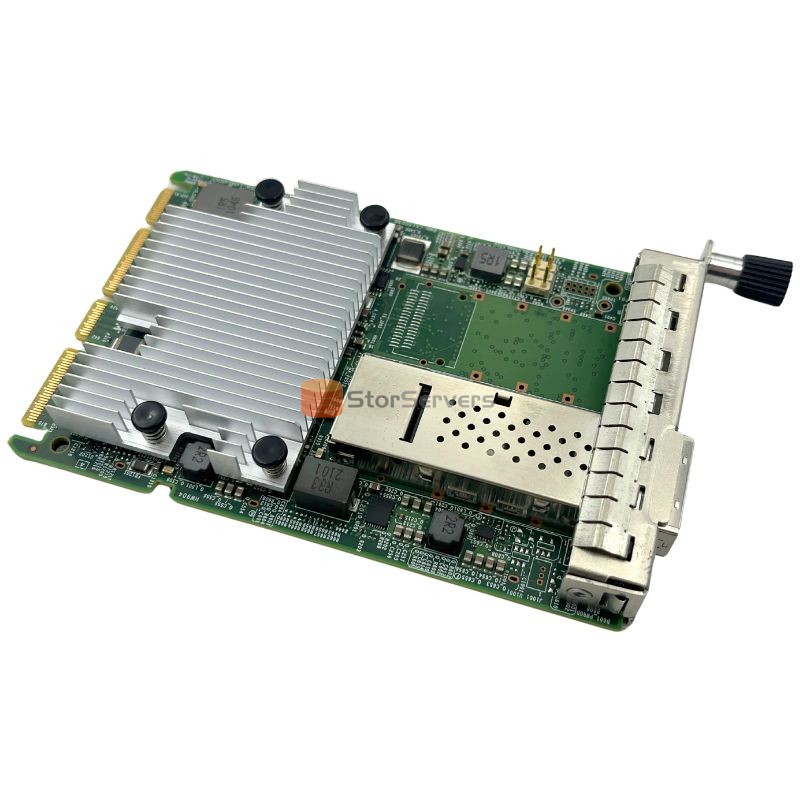

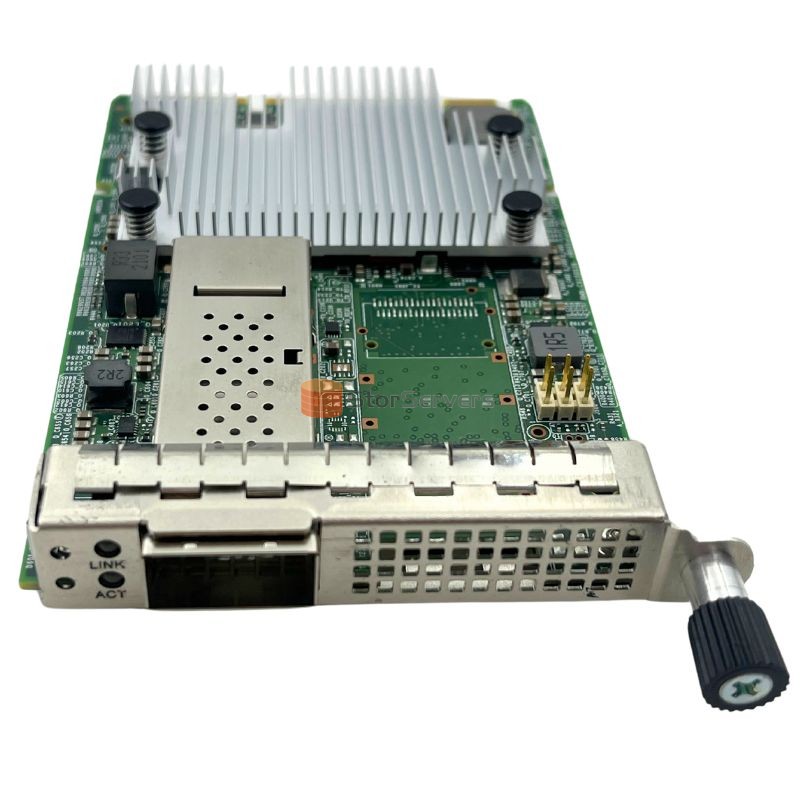

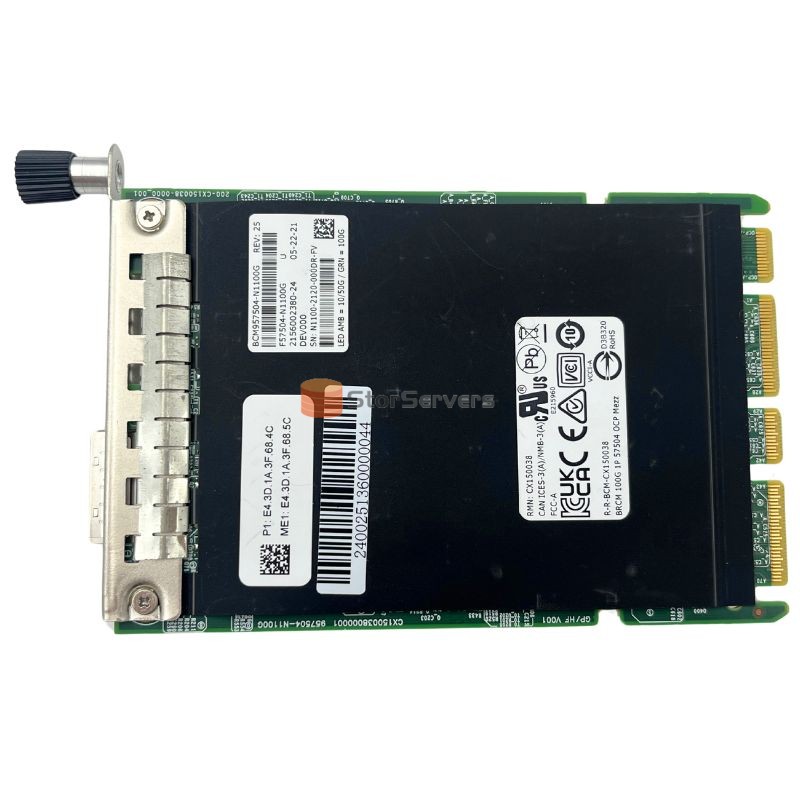

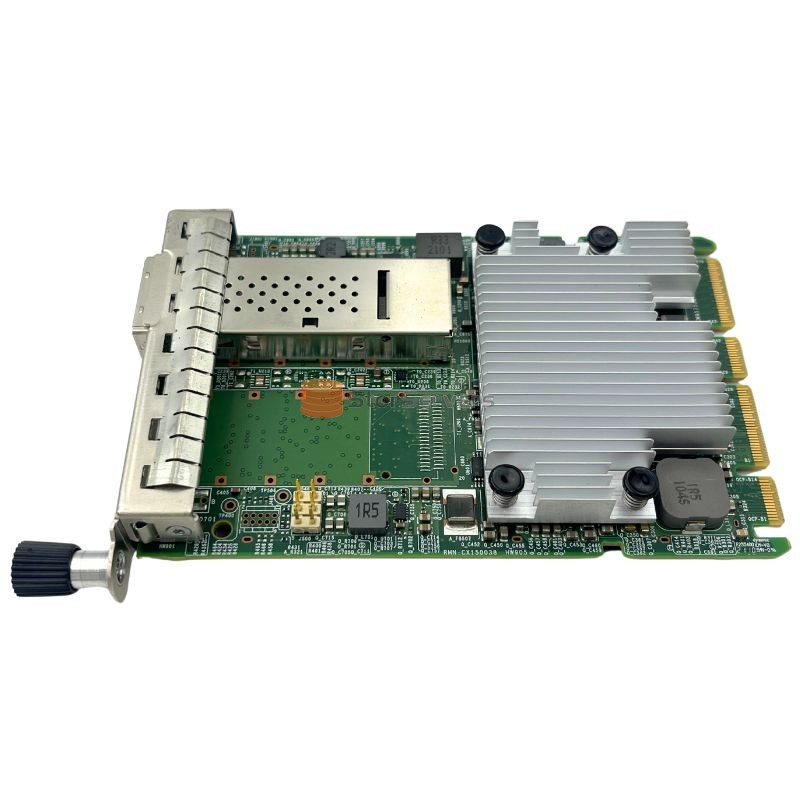

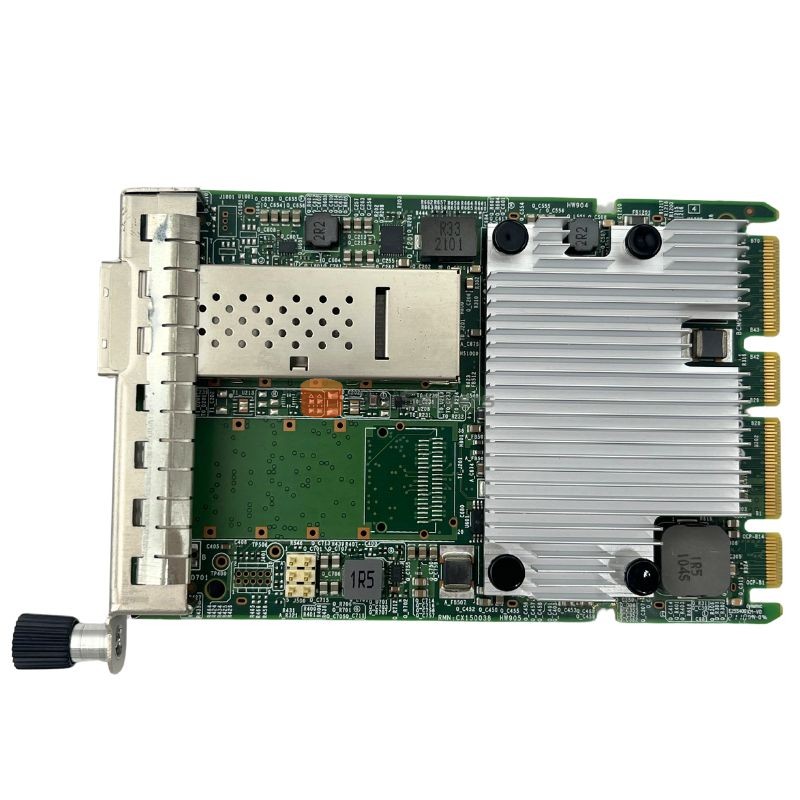

3 YearsThe Broadcom® BCM957504-N1100G is a single-port 100 Gb/s PCI Express 4.0 x16 network adapter designed to the Open Compute Project (OCP) 3.0 Design Specification in small form factor with one QSFP56 network connector. The adapter supports QSFP56/QSFP28/QSFP+ optical modules and copper direct-attach cables. The network adapter uses the Broadcom BCM57504 100GbE MAC controller with an integrated single-channel 100GbE SFI transceiver.
Key Features
| Model | BCM957504-N1100G |
| Form Factor | PCI-E Card |
| Interface (Bus) Type |
PCIe 4.0 x16 |
| Network Interface | 100GbE |
| Bracket height | Full height/Half height |
| Ports |
Single-port QSFP56 |
Lead time
| Quantity (pieces) | 1-10 | 10-60 | >60 |
| Lead time (days) | 3 | 3-5 | To be negotiated |
