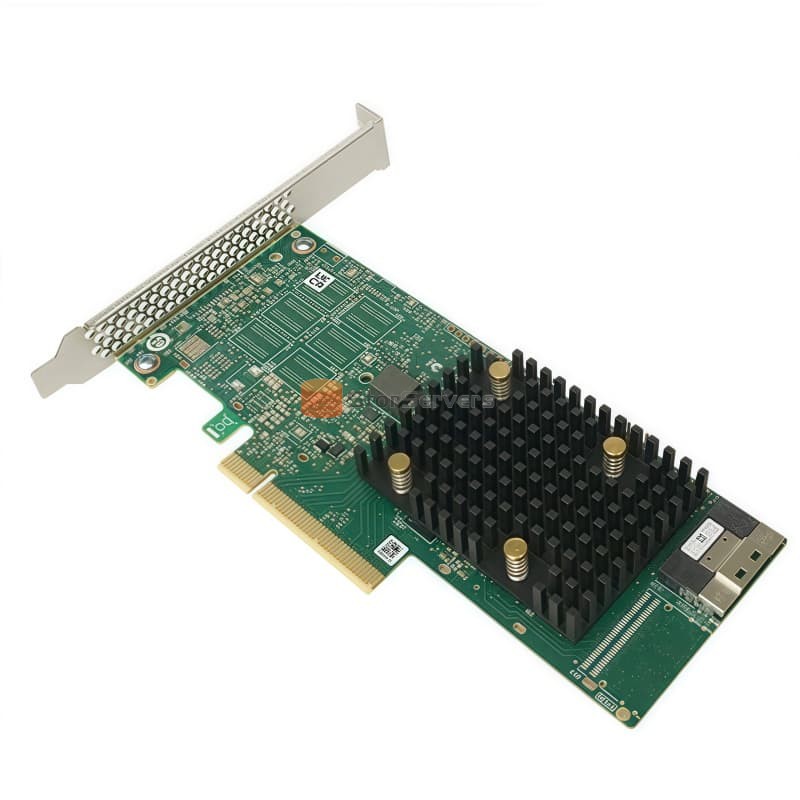

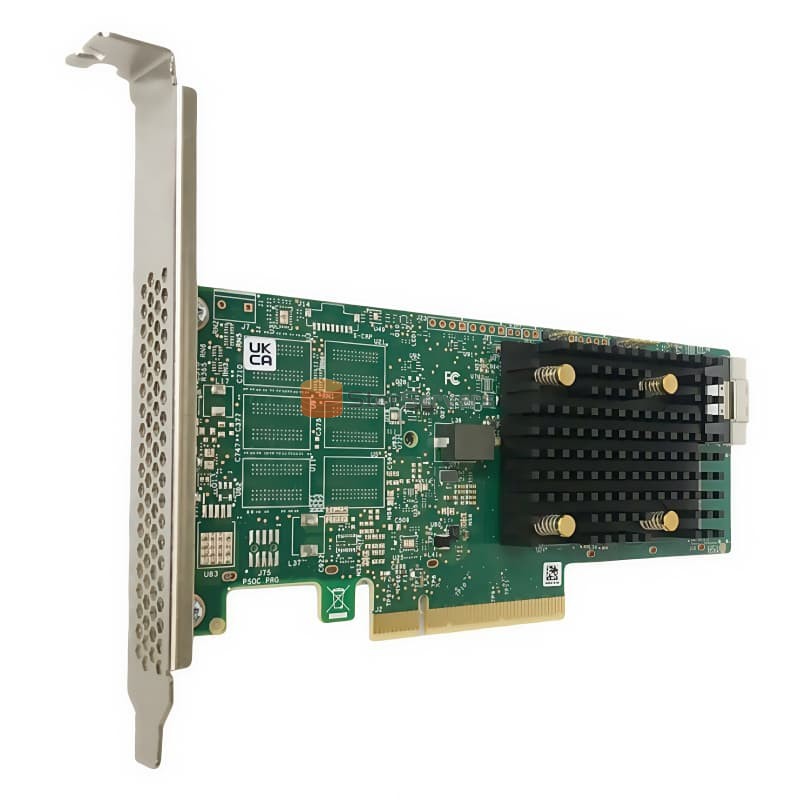

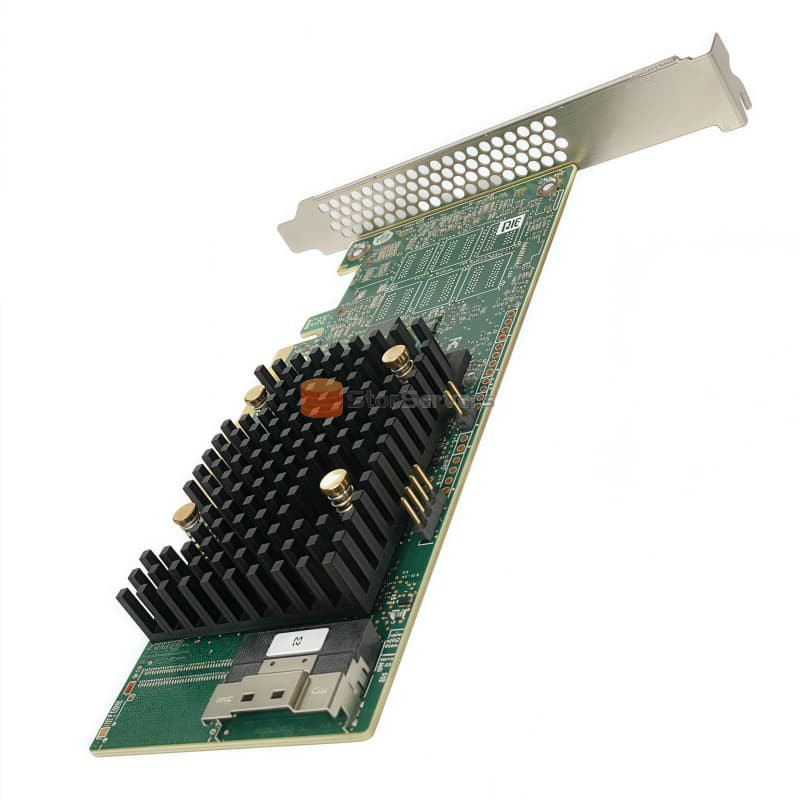

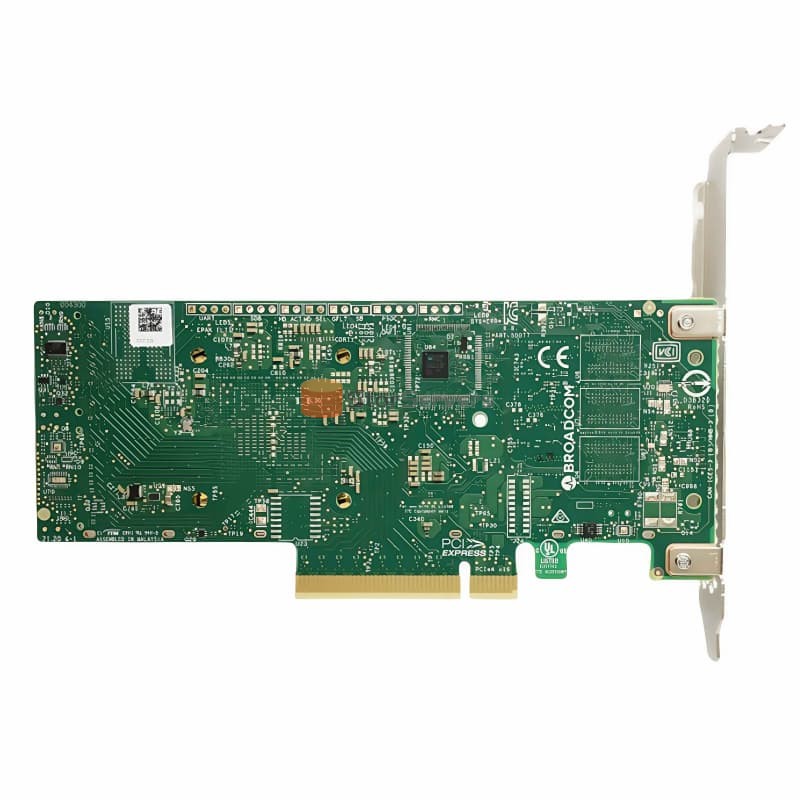

SAS SATA RAID controller 9500-8i 05-50134-01
Applications
9500 Series PCIe Gen 4.0 Tri-Mode Storage HBAs 12Gb/s SAS/SATA/PCIe (NVMe) Tri-Mode HBAs.Overview,The Broadcom ® HBA 9500 series of 12Gb/s SAS/SATA/PCIe (NVMe) Gen4 Tri-Mode storage adapters provides system and server OEMs and data centers with unprecedented flexibility and high performance at the lowest cost. Utilizing Broadcom’s Tri-Mode SerDes technology, the HBAs enable the operation of NVMe, SAS, or SATA devices in a single drive bay, allowing for endless design flexibility.Based on the Broadcom SAS3816 and SAS3808 eight-lane host PCIe to SAS/SATA/PCIe IOC controllers, the 9500 series adapters are the first HBAs to offer both PCIe Gen 4.0 host and PCIe Gen 4.0 storage interfaces. PCIe Gen 4.0 enables these adapters for high bandwidth by delivering twice the bandwidth and 75% more IOPs.Tri-Mode SerDes Technology Broadcom’s Tri-Mode SerDes technology enables operation of NVMe, SAS, or SATA storage devices in a single drive bay. A single adapter can operate in all three modes concurrently servicing NVMe, SAS, or SATA drives. The adapter negotiates between speeds and protocols to seamlessly work with any of the three types of storage devices. Tri-Mode support provides a non-disruptive way to evolve existing data center infrastructure. By upgrading to a Tri-Mode adapter, users can expand beyond SAS/SATA and use NVMe without major changes to other system configurations. The 9500 series adapters are compatible with existing PCI Express SFF-8639 Module (U.2) backplanes allowing users to boost performance for today’s ever increasing bandwidth requirements.
Key Features
• Connect up to 1024 SAS/SATA devices or 32 NVMe devices
• 1× SFF-8654 SlimSAS x8
• RAID levels 0, 1 and 10
• SAS3808 12Gb/s Tri Mode ROC chip
• No cache
Specification
| Model |
9500-8i |
| Adapter Type |
SATA+SAS HBA |
| Storage Controller |
SAS3808 |
| Connectors |
1× SFF-8654 SlimSAS x8 |
| PCIe Host Interface |
PCIe 4.0 x8 |
| RAID Levels |
0, 1 and 10 |
Form Factor
|
Half height and half length (6.127 inches x 2.712 inches)
|
Ports
|
8 |
Lead time
| Quantity (pieces) |
1-10 |
10-60 |
>60 |
| Lead time (days) |
3 |
3-5 |
To be negotiated |
